EM-GS3系列旁路软起动器

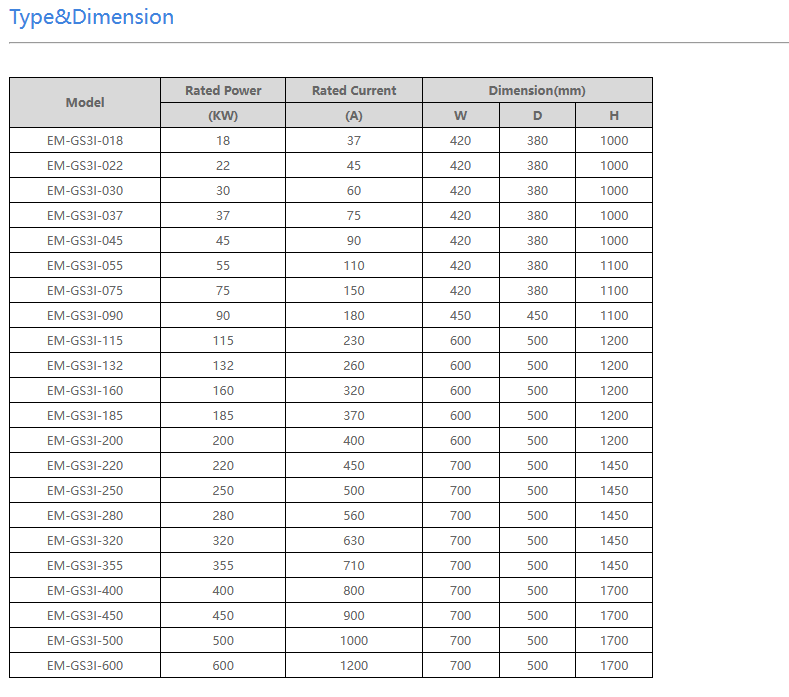

EM-GS3I Series Online Soft Starter Cabinet

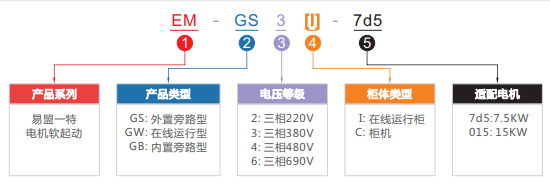

EM-GS3 旁路软启动器型号
EM-GS3-011
EM-GS3-015
EM-GS3-018
EM-GS3-022
EM-GS3-030
EM-GS3-045
EM-GS3-055
EM-GS3-075
EM-GS3-090
EM-GS3-115
EM-GS3-032
EM-GS3-160
EM-GS3-200
EM-GS3-250
EM-GS3-280
EM-GS3-320
EM-GS3-355
EM-GS3-400
EM-GS3-450
EM-GS3-500
EM-GS3-600
(需要加RS-485通讯模块的另外收费)
Product features
Full digital control system and multiple start-up mode
Use Microprocessor, fuzzy control and high current zero-segmented technique.
With strong load adapting and electromagnetic compatibility, stable and reliable performance.
Multiple motor start-up mode and stop mode
Number of starts per hour is more than 2 times the self-coupling voltage-drop starter
Easy operation
Direct installation with "start" and "stop" two buttons, easy operation.
LCD display control panel, convenient to query voltage, current and other parameters.
Small size, light weight, easy to transport and install.
Cost-effective
1. 1 selection. in terms of self-couplina yoltage-drop starter increase two orades selection, hiah cost-effective
No need testing, direct installation
Low failure rate. according to the error code. simple faults can be ruled out on their own.The controled-silicon inside the cabinet working on line constantly No need AC contactor, reduce maintenance costs
Strong Environmental Adaptability
On ine running soft starter requires ow ransformer capacity, generaly confguration in accordance with 1.5 fimes the rated curent sef-coupling needs more than 2times.
Wide range of voltage. +15%
Cabinet was sealed structure, dust prevention
产品特点：
先进的软件性能
智能测算，快速完成软启动过程。在线校准电流、电压显示值。
完善的保护功能
具有多重保护功能,能够有效保证电机的正常运行。
缺相保护
过热保护
过流&过载保护
三相不平衡保护
欠压&过压保护
负载短路保护
电机欠载保护
规范的产品组装
按照生产作业指导书流水线组装，保证产品质量统一规范。
严格的制板工艺
控制板由自动化SMT，绑定，插件完成。
控制板的24小时老化及再检验。
液晶屏100%上电测试。
所有的控制板批量生产，对应相应批次号，便于追溯。
控制板全部采用三防处理，防潮、防盐雾、防霉。
可靠的质量保障
整机完整性能测试。
整机耐压绝缘测试。
性能检验合格机器全部进行24小时老化。
出厂前的最终检验。
便捷的售后服务
可靠性能奠定优质服务基础。
提供完善的配套方案设计。
及时周到的使用咨询。

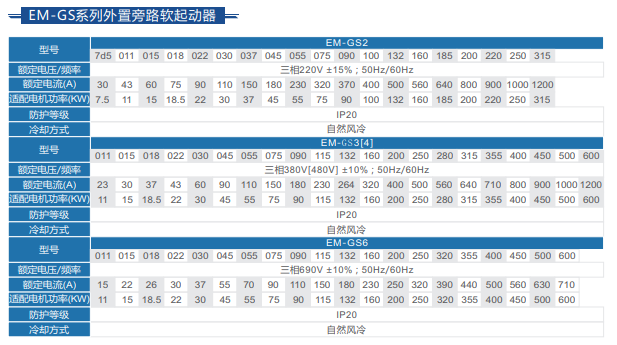

规格参数
