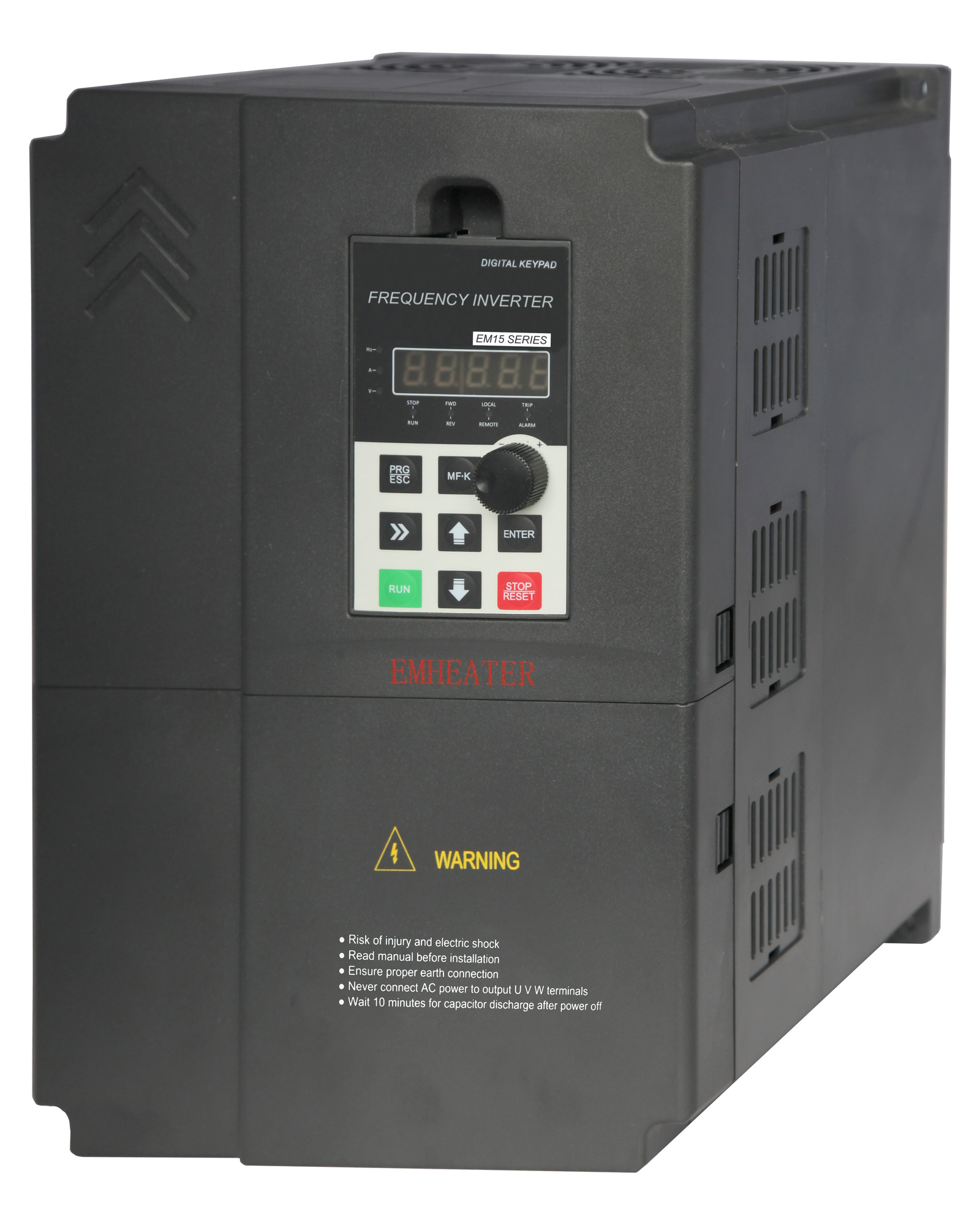

EM15-SP系列光伏专用型矢量变频器

EM15-SP Series Solar Inverter




产品特色Products Feature


  • 全面电压及功率范围:支持单相220V、三相220V以及三相 380V水泵; 功率从0.75kW到400KW;

  • 易用性好,即开即用系统设计, 内置电机水泵保护功能

  • 水位检测功能,可支持端子/模拟量检测;

  • 准确显示PV功率、PV电流、水泵流速等运行参数;

  • 全系列产品均可实现交流市电供电或PV电池供电切换,满足24小时无看护工作;

  • 准确快速的MPPT算法追踪PV电池最大功率点,确保太阳光功率跟踪效率可达到99%;

  • 支持通用变频器基本功能,如端子启停、RS485/Modbus通讯,可以进行远程操作和监控;

  • 无蓄电池设计,适用于各种应用场合, 易于维护

  • 完善的保护功能:具有自动休眠功能,低频保护、过流、过载保护等保护功能,能有效延长产品寿命;

Feature

Support voltage and power range: Single phase or three phase 220V, Three phase 380V: Power is from 0.75kW to 400kW.

.Easy to use built in water pump protection functions.

The water level detection functions, which can support terminal /analog detection.

PV power, PV current, pump flow rate and other operating parameters are accurately displayed.

All series of products can realize the switching of AC power supply or PV power supply to meet the 24-hour work

Accurate and fast MPPT algorithm tracking pY battery maximum power point. ensure 99% solar power trackina eficiency

Support for basic function ofinverters, such as termina control start and stop, RS485 communication, which can remoteoperation and monitorina.

Battery-free design, suitable for various applications, easy to maintain.

Pertect protection function:with automati dormancy function, low frequency protection, overcurrent overoad protection andother protection functions, caneffectively prolong the product life.

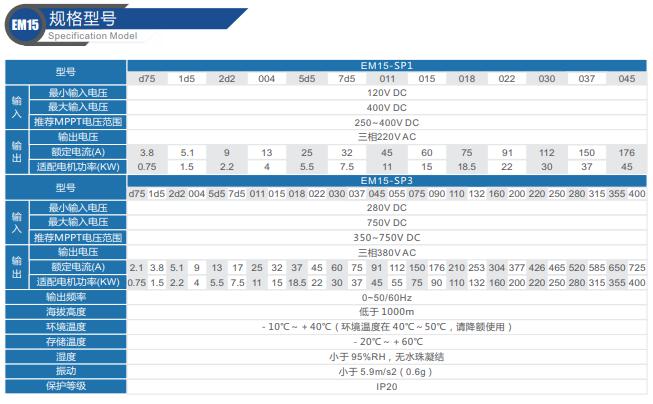

规格参数


规格参数
