EMHEATER易盟一特EM15-D系列拉丝机专用型矢量变频器

产品特点Product features

• 采用高性能的矢量控制技术，输出转矩精度高，转矩脉动小

• 收放卷盘径适应能力强，启动平滑，高低速下均可实现张力稳定；

• 张力锥度收卷功能，卷绕成型更好；

• 智能卷径识别，识别精度高，抗扰动能力强；

• 内置简易PLC，轻松应对直进式拉丝机现场；

• 标配RS485通讯接口，支持RTU模式的Modbus协议；

• 智能参数设定，内部预置几组常用参数，降低用户参数设置工作量；

• 内置各种功能模块，有效的降低外部系统成本；

• 完善的惯量、转矩补偿功能，开环张力控制适应性更强。




• Product features

• For wiredrawing:

• , Nospeed dead zone. low speed 1Hz rated toroue smooth output, throuah themold. zero material loss when testinamachine2. Low-speed die-drawing and high-speed wire drawing are independent of eachother, and the wire drawing process is energy-saving and eficient3.Automaticalyadjust the output frequency acording to the actual load change of the wiredrawing to maintain the ine speed constant4. Automaticallyadjust the output power of the inverter to keep it constant and the heavy loadstarts smoothly.

• Winding:

• , Automaticalytrack the drawing speed. the tension balance bar is basically maintained at themidpoint of the balance bar2. ltcan cooperate with the main machine of the wire drawing machine and can controlthe winding tension independently.3. Automaticallyadiust the output frequency according to the actual load change of the wiredrawing to maintain the line speed constant4. Nomatter empty half or full: thick lines, thin lines; low speed, medium speed,high speed, the tension is always constant

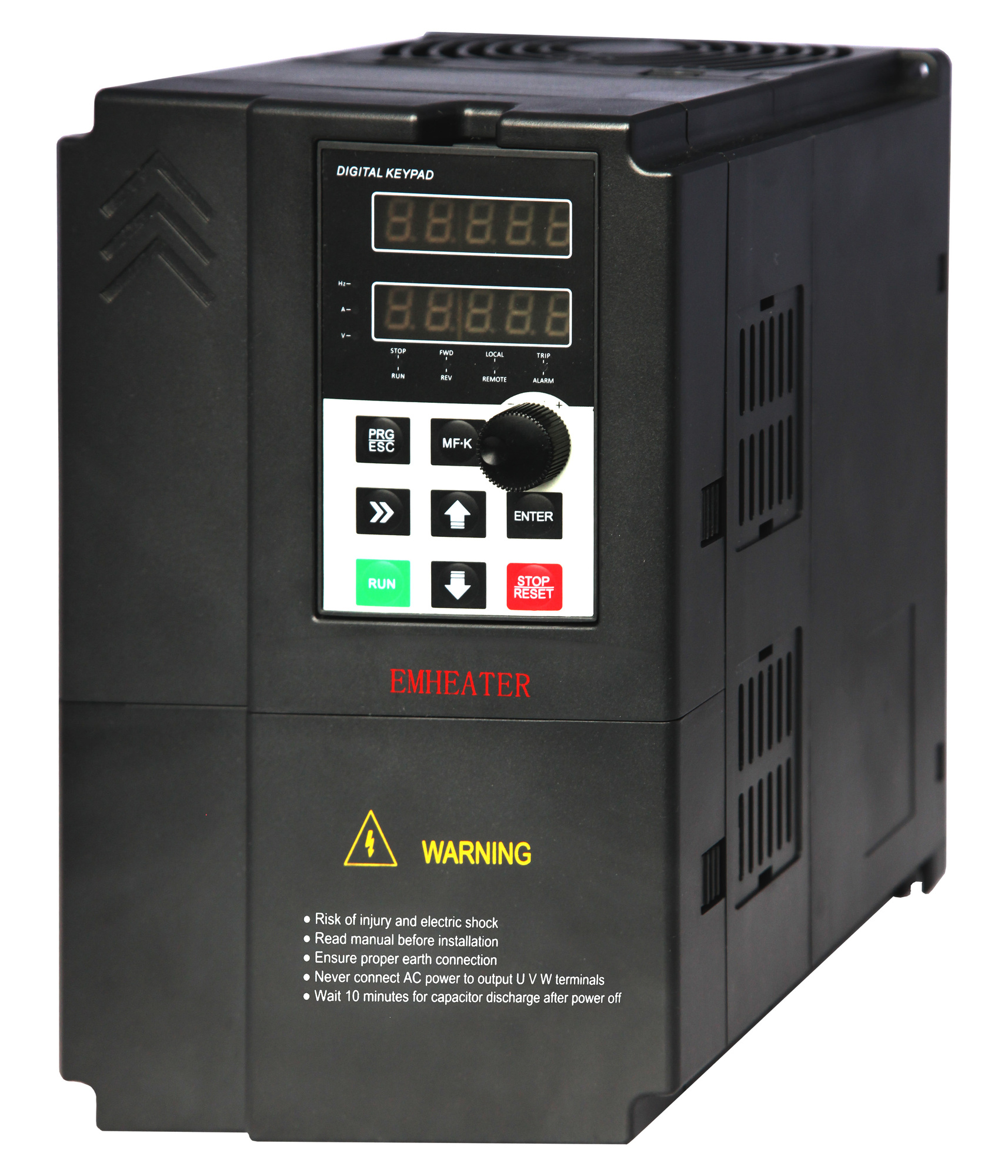

• EM15-D Series Drawing Machine Inverter

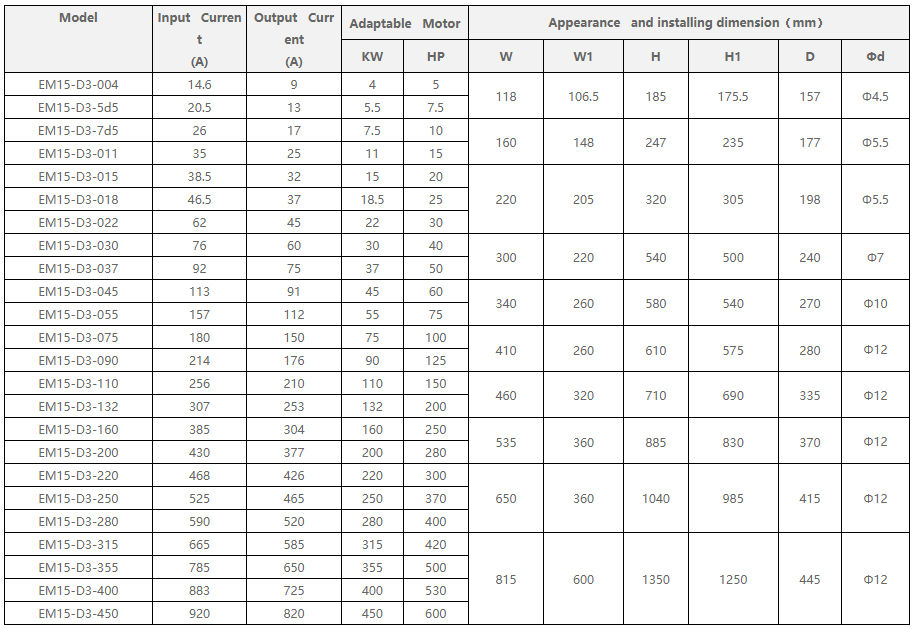

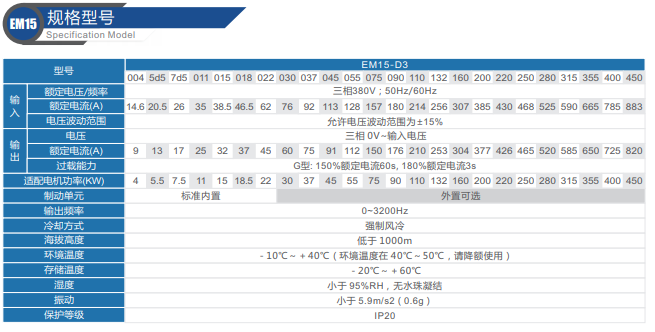

规格参数

规格参数
