高压固态软启动柜

Product descriptions from the supplier

Overview

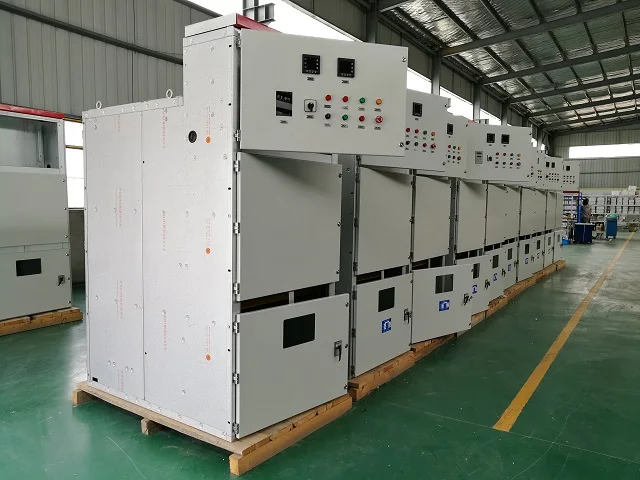

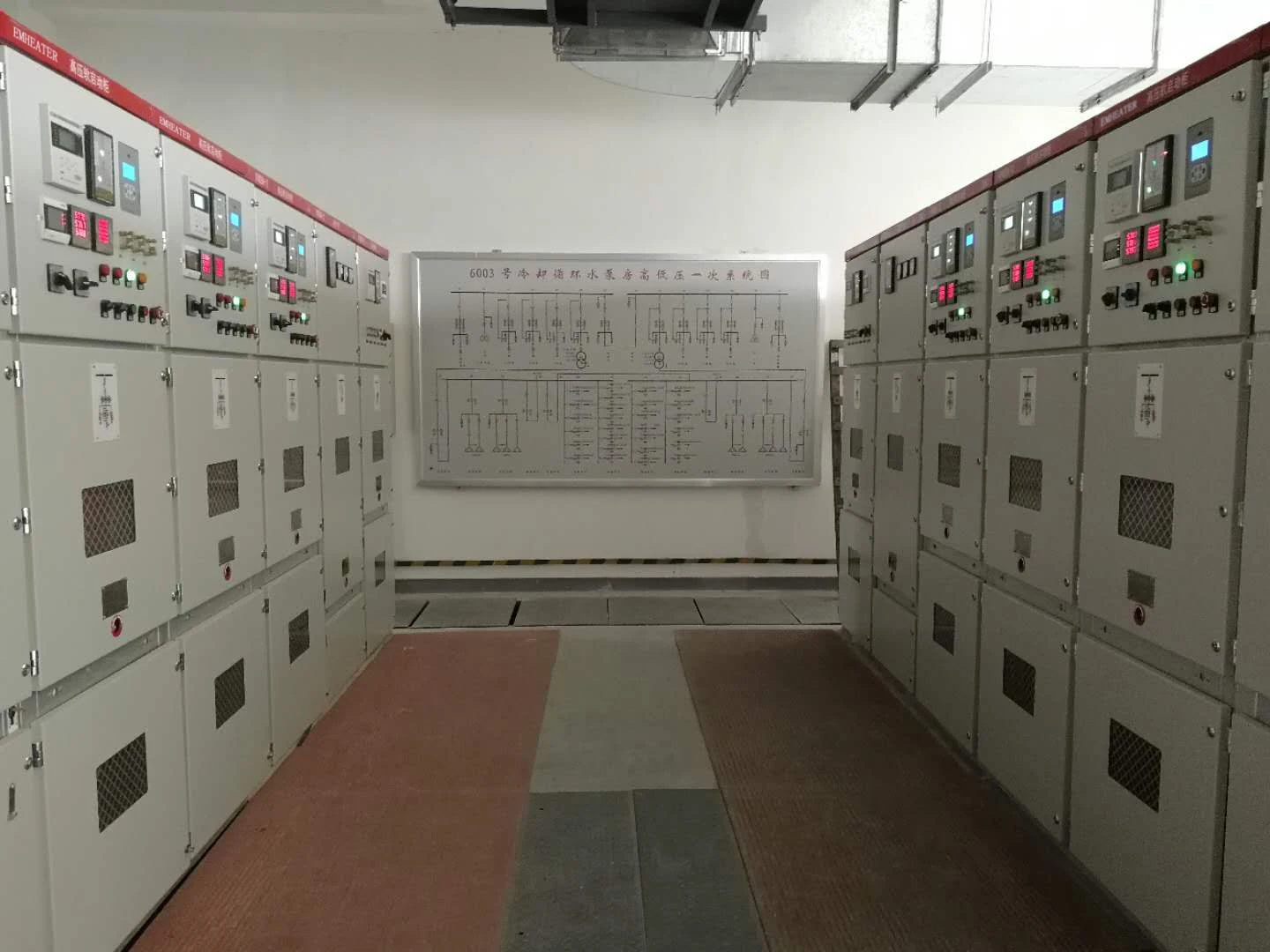

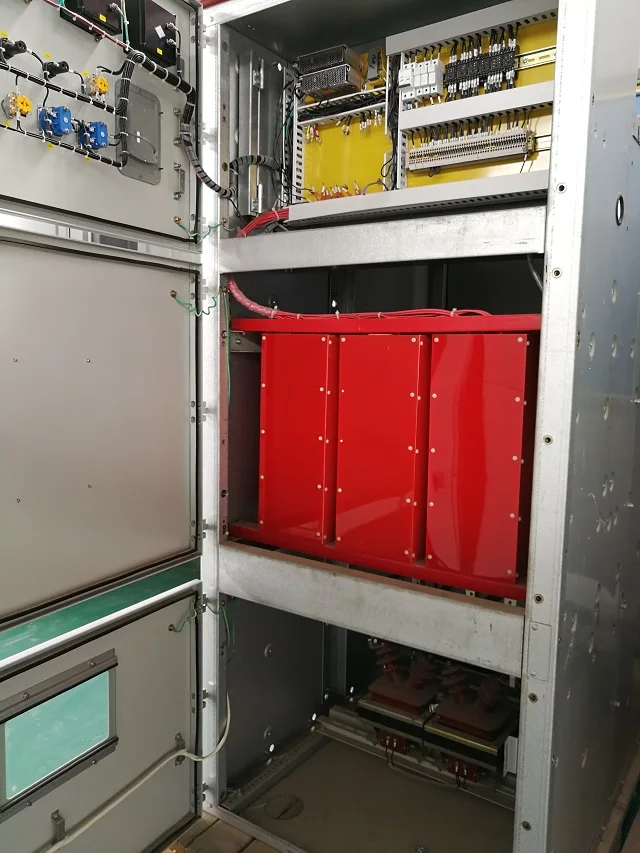

Projects pictures:

3kv/6kv/10kv/11kv中压电机固体软启动器300KW高品质固体软启动器特点:

过载能力:500%满载电流运行30s, 6倍满载电流1个周期。

相序:可在任意相序下工作。

三相电源:AC3KV、6KV、10KV、15KV (-15%+10%)

控制电源:AC/DC220V (-15%+10%)

频率:50Hz, 60Hz±2%

适用电机:鼠笼式异步电机和同步电机

启动频率:可以频繁启动,建议每小时不超过10次

防护等级:IP4X

冷却方式:风冷

地点:室内

环境条件:当海拔超过1500m时,应降低容量

3kv/6kv/10kv/11kv Medium Voltage Motor Solid Soft Starter 300KW High Quality Solid Soft Starter features:

Overload capacity: 500% full loaded current operation 30s, 6 times full loaded current 1 cycle.

Phase sequence: it can work under any phase sequence.

Tri-phase power supply: AC3KV, 6KV, 10KV, 15KV (-15%+10%)

Control power supply: AC/DC220V (-15%+10%)

Frequency: 50Hz, 60Hz ±2%

Motors to be suitable for: squirrel-caged asynchronous motors and synchronous motors

Starting frequency: it can start frequently, no more than 10 times per hour is suggested

Protection level: IP4X

Cooling manner: air cooling

Location: indoors

Ambient conditions: when altitude is over 1500m, capacity shall be lowered

correspondingly

Ambient temperature: -25---+45 degrees

Relative humidity: no higher than 95% (20+5 degrees), no dew condensation

No inflammable, explosive or corrosive air, no conductible dust, good ventilation, less than 0.6G in vibration.

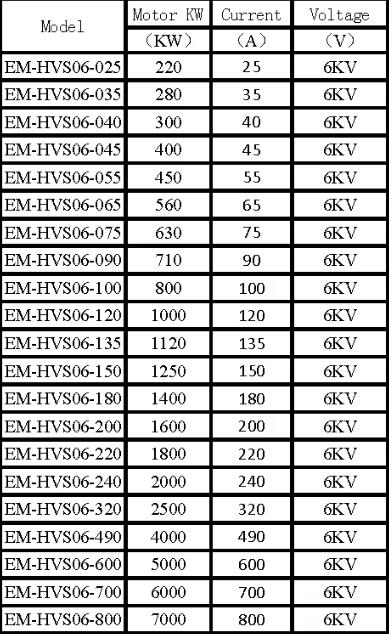

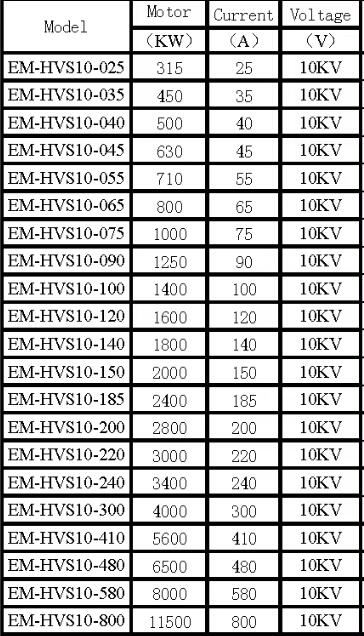

Models:

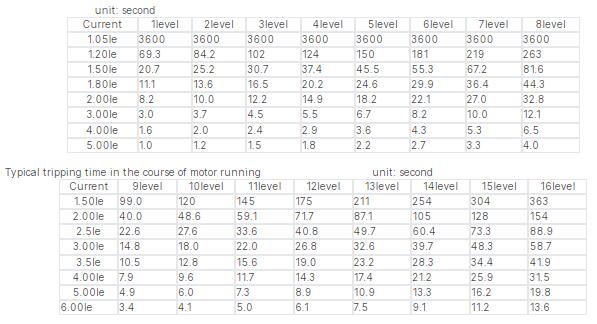

Typical tripping time in the course of motor running




Areas of application:

Electronics, textile, light industry, building materials, food, machinery, printing and dyeing, petrochemical, paper, logistics transportation,

Wire drawing machine, winding machine, blow molding, chemical fiber, tobacco, grinder, mixer, extruding machine, injection molding machine, chemical industry, etc.
